Best Magneto Architecture on AWS Server

July 26, 2018 / Nirav Shah

Magento provides two distinct platforms: Magento Open Source (previously Magento Community Edition) and Magento Commerce; the latter is available in an on-premises version (previously Magento Enterprise Edition) or as a platform-as-a-service (previously Magento Enterprise Cloud Edition). There were also two former platforms, Magento Professional Edition and Magento Go.

Magento can be deployed on AWS Cloud platform very efficiently using its highly available, reliable and scalable infrastructure as a services.

<b>Sample Magento deployment for low cost budgets:</b>

We can deploy Magento website on AWS Cloud Platform by selecting right infrastructure components as per our desires.

We can make the infrastructure highly available and scalable by implementing services like – Auto scaling and multi AZs deployment.

<img class=”img-responsive” src=”https://www.eternalsoftsolutions.com/blog/wp-content/uploads/2018/07/1.jpg” />
<p style=”text-align: center;”>Single AZ Deployment for small Magento site</p>
<b>Services Used in this deployment:</b>
<ul class=”scaling”>
<li>VPC</li>
<li>Subnets</li>
<li>IGW</li>
<li>NAT Gateway</li>
<li>EC2</li>
<li>RDS</li>
<li>ElastiCache</li>
<li>S3</li>
<li>CloudFront</li>
<li>Elastic Load Balancer</li>
<li>Route53</li>
</ul>
&nbsp;

<a href=”https://www.eternalsoftsolutions.com/blog/install-magento-2-using-composer-on-ubuntu-16-04-18-04-with-apache2-mariadb-and-php-7-1-support/” target=”_blank” rel=”noopener”><button class=”btn btn-primary” role=”button”>Click Here For Step By Step Magento2 Installation On Ec2</button></a>

&nbsp;

<b>Cost Estimate:</b>

We considered web server tier as m4.large and database as t2.medium in this architecture. Average monthly cost may be vary according to type of resources.

This architecture with above mentioned resources will cost approximately $170 per month with On-Demand service model.

<b>Standard Magento deployment :</b>

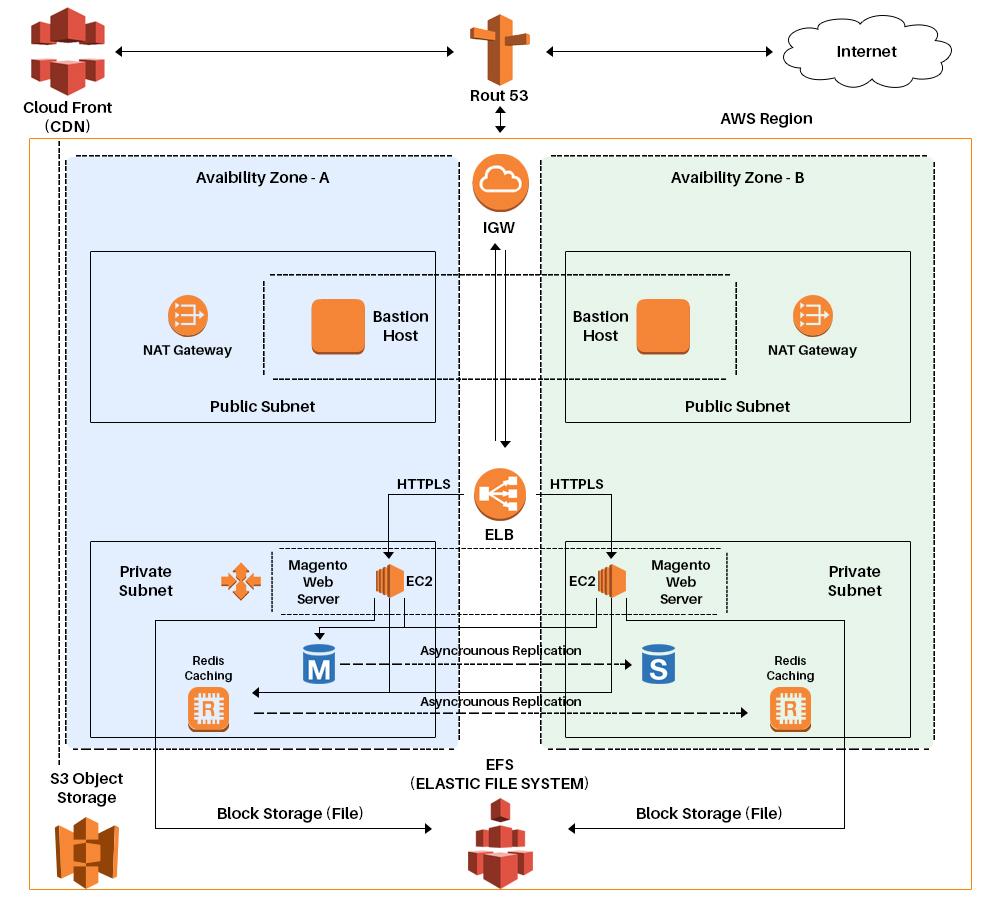

<img class=”img-responsive” src=”https://www.eternalsoftsolutions.com/blog/wp-content/uploads/2018/07/2-1.jpg” />
<p style=”text-align: center;”>Standard Multi – AZ Magento deployment</p>
<b>Services Used in this deployment:</b>
<ul class=”scaling”>
<li>VPC</li>
<li>Subnets</li>
<li>IGW</li>
<li>NAT Gateway</li>
<li>EC2</li>
<li>RDS</li>
<li>ElastiCache</li>
<li>S3</li>
<li>CloudFront</li>
<li>Elastic Load Balancer</li>
<li>Route53</li>
<li>Auto Scaling</li>
</ul>
<b>Cost Estimate:</b>

We considered web server tier as m4.large and database as t2.medium in this architecture. Average monthly cost may be vary according to type of resources.

This architecture with mentioned resources will cost approximately 400$ per month.

<b>Future Expansion of Solution:</b>

We can easily expand our infrastructure whenever it needed to be, We can use services such as –
<ul class=”scaling”>
<li>Auto Scaling</li>
<li>Snapshot</li>
<li>Image</li>
<li>Cloud Fromation</li>
<li>Elastic File System</li>
</ul>
<b>Monitoring: </b>

Monitoring of infrastructure is a very important aspect and AWS provides kind of monitoring services, some of them are:
<ul class=”scaling”>
<li>CloudWatch matrixes</li>
<li>CloudTrail</li>
<li>FlowLogs</li>
</ul>
CloudWatch collects monitoring and operational data in the form of logs, metrics, and events, providing you with a unified view of AWS resources, applications and services that run on AWS, and on-premises servers.
